Specs

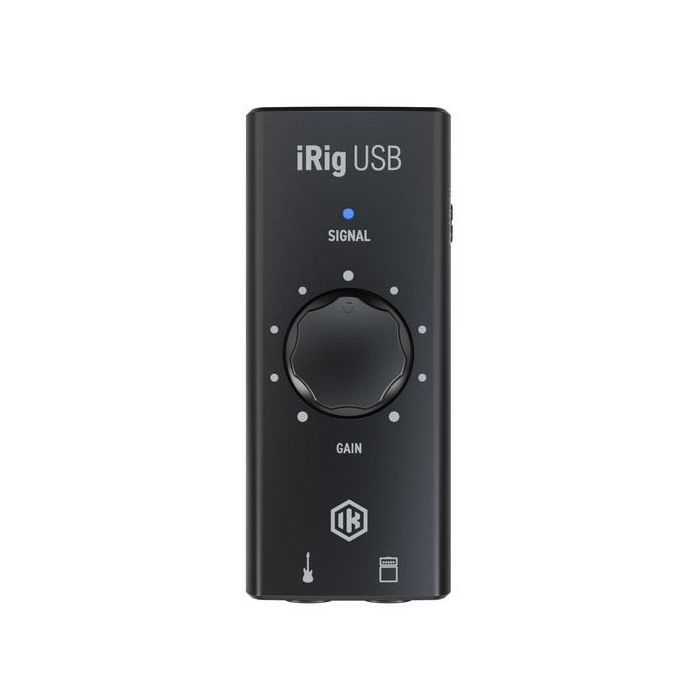

iRig USB Specifications
Common
AD and DA resolution: 24-bit
Sampling rate: 44.1 kHz and 48 kHz
Host connection: USB Type-C socket
Instrument Input
Input impedance: 500 kOhms
Maximum input level: +13.5 dBu
Frequency response: From 20 Hz to 20 kHz within 0.5 dB (48 kHz sample rate)
Dynamic range: 90 dB(A)
Amp Output
Configuration: Unbalanced
Output impedance: 3.3 kOhms
Frequency response: From 10 Hz to 20 kHz within 1 dB (48 kHz sample rate)
Dynamic range: 97 dB(A)
Headphone Output
Output impedance: 22 Ohms
Maximum output level: approx 6mW into 50 Ohms load
Frequency response: From 10 Hz to 20kHz within 1 dB (48 kHz sample rate)
Dynamic range: 94 dB(A)
Package includes
iRig USB interface
USB-C to USB-C cable (60 cm/23.62")
Dimensions
Size: 99 mm/3.9" x 42 mm/1.65" x 25 mm/0.98"
Weight: 54 g/1.9 oz.
Compatibility
Computers
Mac®: macOS 10.6 or later. One free USB port.
Windows®: Windows 10 or later. One free USB port. For low latency, the IK Multimedia's iRig audio driver must be installed. Download the iRig ASIO driver here.
iOS Devices
Compatible with iPhone and iPad devices with USB-C connector.
Also compatible with iPhone and iPad devices with Lightning connector using Apple's Lightning to USB 3 Camera Adapter.
Android Devices
Compatible with Android devices running Android 5 or later and with USB digital audio capabilities.
