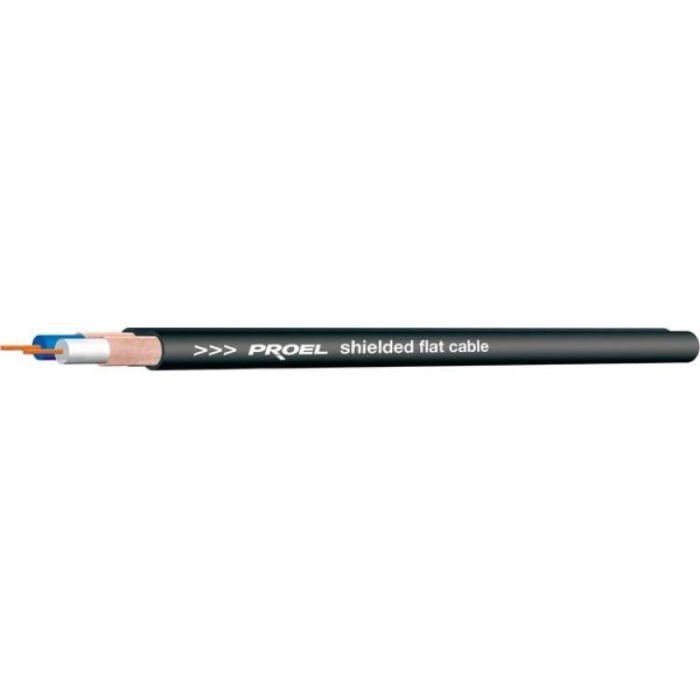

Cavo stereo Proel HPC305 al mt 2 x 0.22 mm per cavi streo

Caratteristiche
Cavo piatto a 2 conduttori singolarmente schermati con guaina esterna in PVC flessibile. Sezione: 2 x 0.22 mm2.



Specifiche Tecniche

Application fields: Audio connections
Conductors: Bare copper 23 AWG (0.22 mm2)
Insulation: PE Ø 1.60 mm
Shield: Spiral copper / 95%
Jacket: Flexible PVC 50 shore Ø 5.00 mm
Color: Black
Electrical resistance:73,80 Ohm/Km (conductor) @ 20°C
Electrical capacitance:
21,2 pF/m (conductor/conductor) @ 1 KHz
117,5 pF/m (conductor/shield) @ 1 KHz
Velocity of propagation: 80 %
Operating temperature: -30°C / +70°C
Working tension:
< 50 V AC
Weight: 43 Kg/Km
Minumum bending radius: 20 x cable section radius
Packaging: 100 m carton reel
