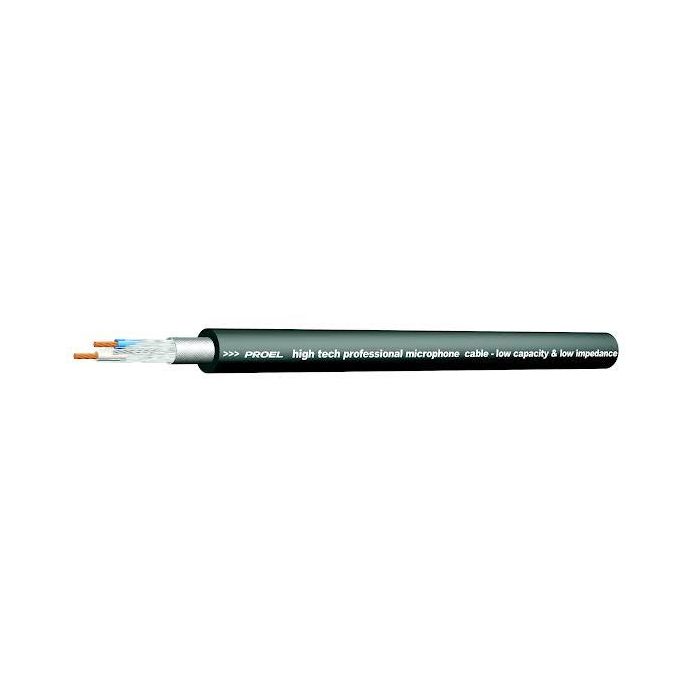

Cavo mic. bilanciato Proel HPC280 al mt. per cavi da palco - SEZIONE 2X0.34 mm2
2,90 €
Cavo mic. bilanciato Proel HPC280 al mt. per cavi da palco - SEZIONE 2X0.34 mm2
Disponibile
SKU
HPC280
Descrizione
Caratteristiche
Cavo bilanciato “high quality” - per microfono con guaina esterna flessibile - O.F.C. (Oxygen Free Copper - Sezione 2 x 0,34 mm2).
Specifiche Tecniche
Application fields: Installations / Recording studios / Microphone connections
Conductors: Bare copper 22 AWG = 43 x 0.10 mm (0.34 mm2)
Insulation: PE Ø 1.50 mm
Shield: Tinned copper braid / 95%
Jacket: Super Flexible PVC 70 shore Ø 6.50 mm
Drain wire: Tinned copper 24 AWG = 7 x 0.15 mm (0.22 mm2)
Color: Black
Electrical resistance:
56 Ohm/Km (conductor) @ 20°C
16 Ohm/Km (shield) @ 20°C
Electrical capacitance: 40 pF/m (conductor/ conductor) @ 1 KHz
Velocity of propagation: 66 %
Impedance: 110 Ohm
Operating temperature: -20°C / +70°C
Working tension:
< 50 V AC
< 75 V DC
Weight: 57 Kg/Km
Minumum bending radius: 15 x cable section radius
Packaging: 100 m carton reel
