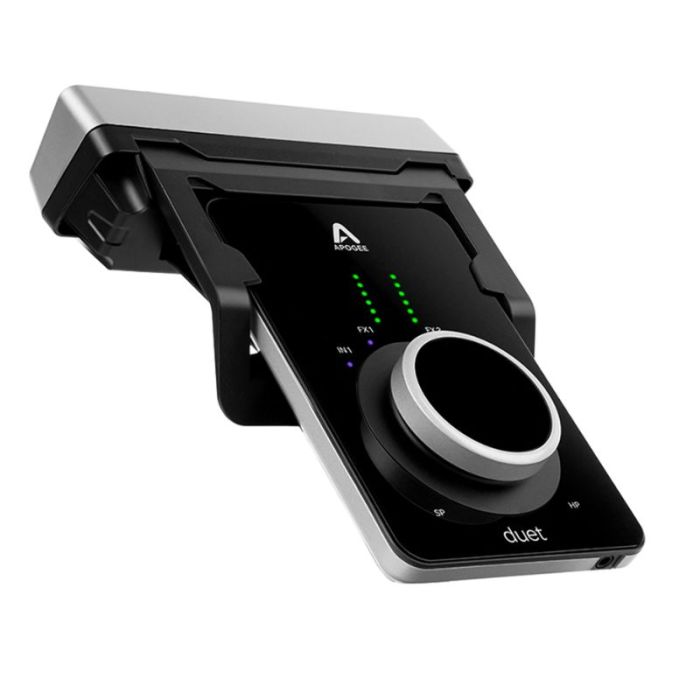

Apogee DUET 3 limited edition

MIC PRE
Gain: Up to 65dB
EIN: 128dB (un-weighted) @ 60dB, 150 Ohm input
Max Input Level: +18dBu
Input Impedance: 4k Ohm

HI-Z
Max input level: 14dBu
Input Impedance: 3.2kOhm (Pad on), 1MOhm (Pad off)


A/D CONVERSION
Max input level +4dBu: +18dBu
Max input level (-10dBV ref): +6dBV
Input impedance: 6.4KOhm
Freq resp 20 Hz -20Khz: > +/-0.2dB (@44.1Khz)
Rel. THD + N: -101dB
Dyn. Range: 122dB (A-weighted)


D/A CONVERSION
Max output level (+4dBu ref): +18dBu
Max output level (-10dBV ref): +6 dBu
Line output impedance: 50 Ohm
Freq resp 20Hz -20 Khz: > +/- 0.05dB
Rel. THD+N : -110dB
Dyn Range: 125dB (A-weighted)

HEADPHONE OUT
Max output level headphones: +18dBu
Headphone output impedance 0 Ohm
Rel. THD+N : -109dB with 300 Ohm Load
Dyn Range: 124dB (A-weighted)


PRODUCT SIZE
Weight: 2lbs. / 0.95 kg
Dimensions: 8.85” x 7” x 3.54” / 22.5cm x 18cm x 9cm
